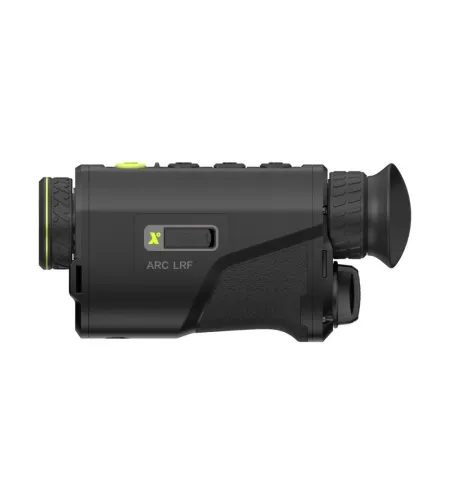

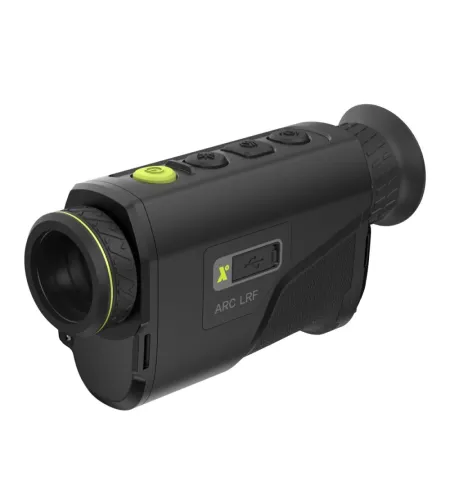

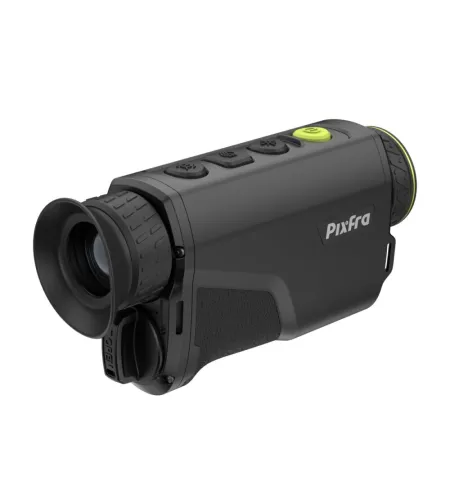

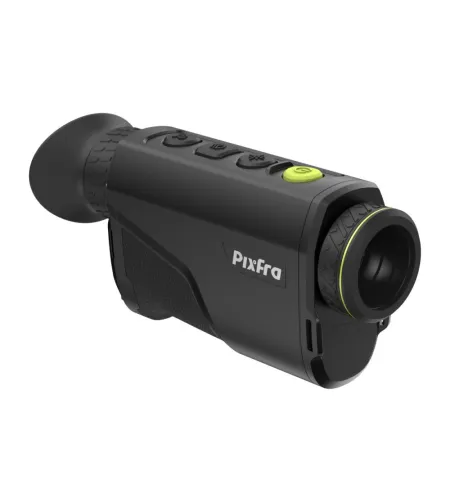

PIXFRA ARC PRO LRF A419P 384x288, 19mm, 1x-8x, 50Hz, Wi-Fi Thermal Imaging Monocular

See More with Powerful Optics
The Arc A419P LRF combines an extremely sensitive 384×288, 12µm, <20mK NETD thermal sensor and a powerful 19mm f1.0 objective lens, achieving a wide 24.3 x 18.2m @ 100m FOV, unprecedented thermal clarity, and a detection range of up to 1000m. The sensor”s 20mK NETD thermal sensitivity achieves richly detailed and vivid thermal imagery, capturing each and every anatomical detail of even the smallest observed heat source, elevating your observation experience regardless of conditions. Pixfra”s intuitive PIPS (Pixfra Image Processing System) 2.0 achieves thermal imagery that is always crisp and clear by minimising environmental noise, boosting contrast, and enhancing image clarity and detail.

Gather Important Distance Data in the Field

The Arc LRF series, as its name suggests, now includes a seamlessly integrated precision laser rangefinder. This LRF will provide distance measurements in the field at a range of up to 1000m with an accuracy of ±1m, making it perfect for data gathering when you need it most and allowing for informed decision-making during observations. The addition of a laser rangefinder does nothing to impede your observation experience, as it is so seamlessly integrated as to be virtually unnoticeable.


Designed for Comfortable Observation
Retaining the familiar design aspects of the original Arc series, the Arc LRF features a few changes to make sure your observation experience is as comfortable as possible. These ergonomic upgrades include a new contoured eyecup and a refined grip with a textured rubberised covering to improve your hold on the device in any weather conditions. Its compact magnesium alloy bodyshell results in a lightweight device that remains comfortable in the hand during long periods of observation. But don”t let its size fool you, this monocular is built to last, withstanding the everyday bumps and knocks one comes to expect whilst working in varying scenarios. Its IP67 even protects the device against adverse weather, allowing it to work unimpeded by heavy rain, dense fog, snow, or high levels of humidity.

Uninterrupted Thermal Observation

Provided with two 18650 batteries, each providing up to 7 hours of battery life (depending on temperature) the Arc LRF is more than capable of keeping your observations going through the day and well into the night. A secure fit, twist cap battery cover, and the ability to swap between batteries quickly and easily makes sure you can worry less about power consumption and focus more on the task at hand.


Share the View

Connect the Arc LRF to the intuitive Pixfra Outdoor app and enhance your observation experience even further. Through the app, the Arc LRF can share its screen with up to four people located within 20m of the device — so, when one person spots an object or animal of interest, all four members of the group can observe at the same time, without having to share the device”s viewfinder. Click here to download the app for Android devices. Click here to download the app for iOS devices.




Specifications:


Detector Type Vanadium oxide uncooled focal plane detector Thermal Sensor 384×288, 12µm, <20mK NETD Frame Rate 50 Hz Lens 19mm f1.0 FOV (m @ 100 m) 24.3 x 18.2 Thermal Focus Control Manual Close Focus Distance 2 m (6.56 ft) Rangefinder Built-in precision laser rangefinder Distance Measurement Range 1000 m Digital Zoom 1, 2, 4, 8 x Magnification 2.1x Colour Palettes 6 (white hot/black hot /iron red/ alarm/amber/emerald) Display 0.41″ 1440×1080 OLED Storage 32 GB Uniformity Correction Auto, manual Picture in Picture (PiP) Yes Audio Recording Yes Hot Spot Trace Yes Wi-Fi Yes Power Supply 5 VDC/1 A, USB Type-C Battery Type 1 replaceable 18650 battery Battery Capacity 3,200 mAh Battery Operating Life Up to 7.5 hours (depending on temperature) Environmental Protection IP67 Product Dimensions 168 mm × 50 mm × 78 mm / 6.61″ × 1.97″ × 3.07″ (L × W × H) Packaging Dimension 228 mm × 120 mm × 187 mm / 8.98″ × 4.72″ × 7.36″ (L × W × H) Weight 360 g
