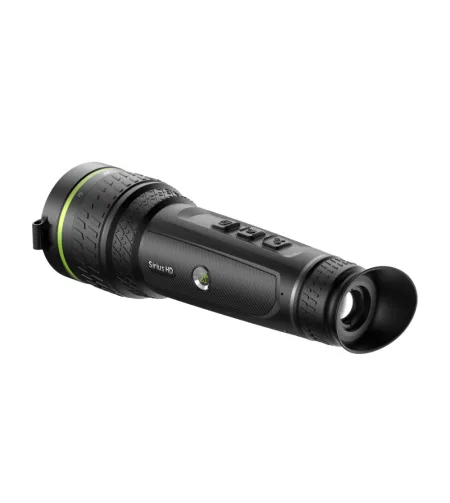

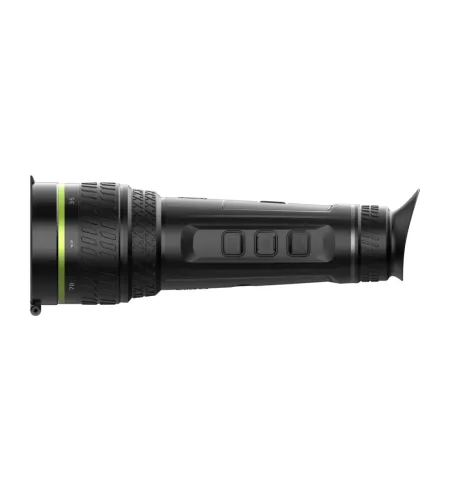

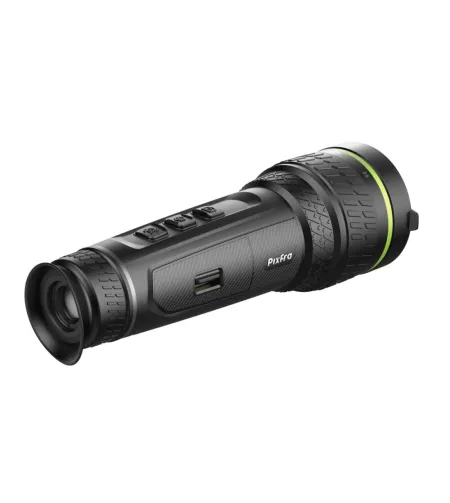

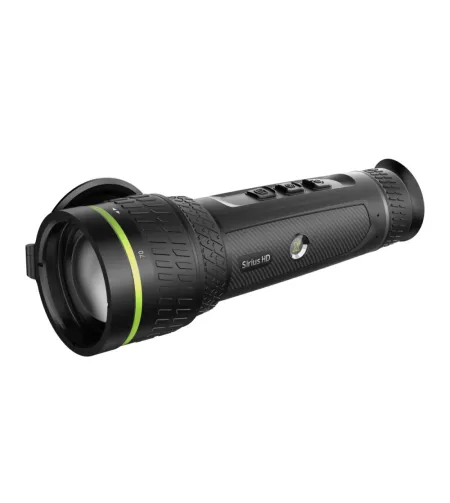

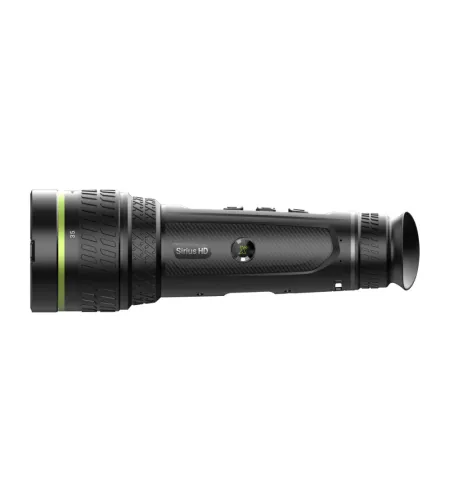

PIXFRA SIRIUS HD SA70D 1280x1024 70mm DUAL Thermal Imager

PIXFRA Sirius SA70D – Compact and powerful thermal imaging monocular

The PIXFRA The Sirius SA70D combines advanced sensor technology with a compact housing that fits comfortably in almost any pocket. Inside is an extremely sensitive VOx sensor with 1280 × 1024 pixels, a 12 µm pitch, and a thermal sensitivity of less than 18 mK. Supported by a variable lens (35/70 mm, f/0.92 or f/1.1), the device delivers clear heat signatures even at long distances. The high-resolution 1920 × 1080 OLED display ensures high-contrast imaging—ideal for demanding observations.


Flexible dual lens for different distances

With a variable field of view of 43,9 m at 35 mm and 21,9 m at 70 mm (each at 100 m), the image can be precisely adjusted. The detection distance ranges from 1800 to an impressive 3600 m. This makes the Sirius SA70D suitable for both detailed observation at medium ranges and overviews at long distances.


Optimized image processing through modern firmware Thanks to the integrated PIPS 2.0 firmware (Pixfra Equipped with the Imaging Processing System (IPS), the device boasts improved zoom, effective noise reduction, and edge sharpening. These features visibly improve image quality and ensure a sharp, stable image – even in challenging conditions.


Artificial intelligence for adaptive image adjustment AI-powered Adaptive Image Calibration (AAIC) technology enhances image display in real time. Through continuous learning, the image dynamically adapts to new environments—for an always-optimized viewing experience.


Individually adjustable display with 6 color palettes With six available color modes—hot white, hot black, rainbow, hot red, hot green, and sepia—you can flexibly adjust the image display. Depending on the situation and your preferences, you'll always get the optimal visual support.


Powerful interchangeable battery for long use A replaceable battery allows for up to 4,5 hours of operation. This ensures the device remains reliably ready for use even during extended observations – without interrupting charging. For even greater independence, the removable battery is ideal for easy replacement while on the go.


Robust housing for outdoor use IP67 certification ensures the device is dust and waterproof. The magnesium alloy housing is not only lightweight but also extremely durable—ideal for use in rain, fog, or extreme temperatures between -30°C and +55°C.


Wi-Fi streaming for live image transmission to up to 4 devices The Wi-Fi function enables a stable connection to up to four smartphones or tablets simultaneously. The live image can be reliably transmitted within a range of 20 m – ideal for group observations or mobile deployments.


64 GB storage for pictures and videos The Sirius SA70D offers a built-in recording function and a generous 64 GB of internal memory. This allows you to document your observations at any time and conveniently evaluate them later.


Conclusion to PIXFRA Sirius SA70D The PIXFRA The Sirius SA70D offers a combination of high-resolution thermal imaging technology, flexible optics, and a convenient display. With its ability to detect heat signatures up to 3600 m, it's a powerful tool for demanding observations.

Scope of Delivery:


thermal imaging device PIXFRA Sirius SA70D Protective bag Strap Hand Strap Battery charger 2x battery USB-C cable User Manual / Quickstart

Technical characteristics of the PIXFRA Sirius SA70D

Battery life 4,5 hours frame rate 50 Hz detection distance 3600 m digital zoom 1, 2, 3, 4, 8 -fold Display resolution 1920 1080 x pixels Display type OLED application Field, field & forest Weight 908 g basic magnification 2,41, 1,21-fold rangefinder (LRF) No lens 35, 70 mm sensor resolution 1280 1024 x pixels Sensor coating VOx (vanadium oxide) Sensor pitch 12 um Sensor sensitivity ≤ 18 mK (NETD) field of view 25,4, 12,4 ° Field of view width 21,9, 43,9 m at 100 m removable battery
