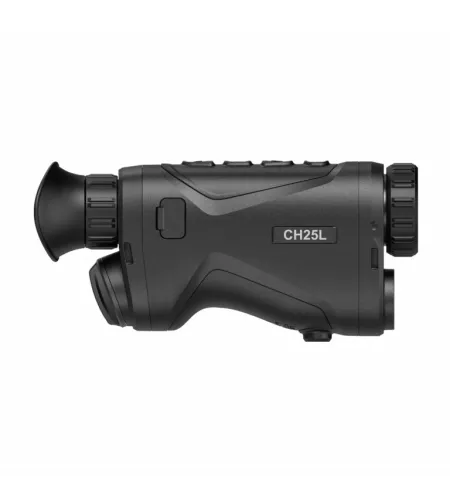

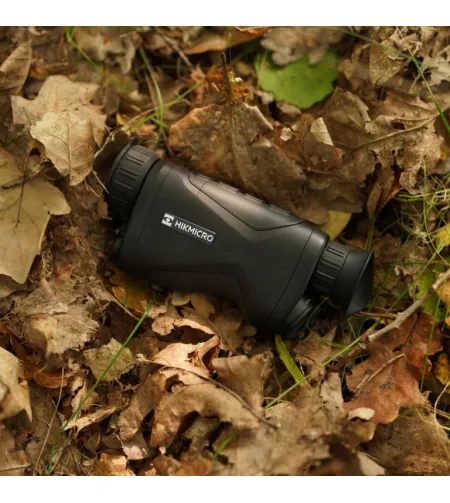

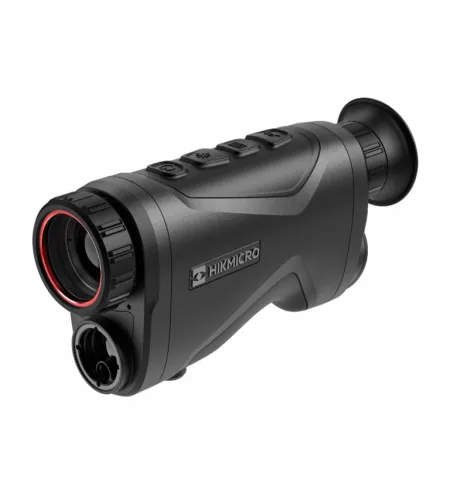

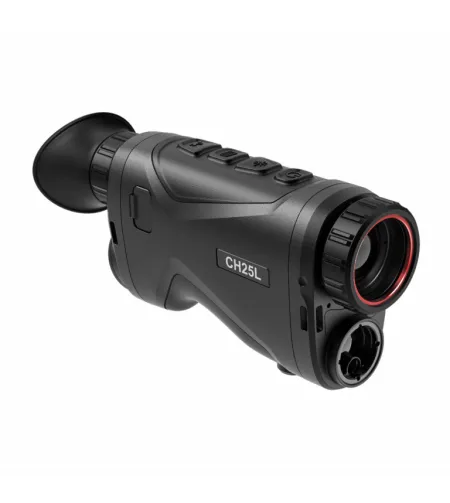

Thermal monocular HIKMICRO CONDOR CH25L

HIKMICRO CONDOR CH25L thermal monocular is equipped with a 384 × 288 @ 12 um infrared detector and a 1024 × 768 OLED display. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions. Its 1000 m Laser rangefinder can accurately measure the distance when you are stalking or observing under low-light conditions. It can be applied mainly in forest hunting, birding, animal searching, adventuring, and recusing scenario.


Key Feature

● High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0) ● 384 × 288 resolution with 12 μm detector ● 1024 × 768 resolution 0.39-inch OLED display ● Advanced image processing technology ● Image Pro for enhancing detail recognition ● Zoom Pro for digital zooming without loss of picture quality ● Replaceable and rechargeable Li-ion battery ● Up to 4.5 hours of continuous operation ● 386 g lightweight, with a compact and ergonomic design



Specification:

• Image Sensor - VOx Uncooled Focal Plane Arrays
• Max. Resolution - 384 × 288
• Frame Rate - 50 Hz
• Pixel Interval - 12 μm
• Response Waveband - 8 μm to 14 μm
• NETD - Less than 20 mK (@25°C), F# = 1.0
• Lens (Focal Length) - 25 mm, f1.0
• Focus Mode - Focus Ring
• Detection Range - 1200 m
• Min. Focusing Distance - 2.5 m
• Magnification - 2.5× to 20.0× (8×)
• Field of View(H × V), Degrees - / m @100 m
• 10.5° × 7.9°/18.3 m × 13.8 m @ 100 m
• Image Display - Display 1024 × 768, 0.39 inch, OLED
• Palettes - Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction)
• Mode - Auto, Manual, External Correction
• Exit Pupil - 4 mm
• Eye Relief - 15 mm
• Diopter (Range) - 5 D to +3 D
• Brightness Adjustment - Yes
• Tone Adjustment - Cold, Warm
• Contrast Adjustment - Yes
• Image Pro - Yes
• Zoom Pro - Yes

Record Video Yes Capture Snapshot Yes Audio Recording Yes Standby Mode Yes Storage Built-in EMMC (64 GB) PIP Yes Hotspot Yes Hot Track Yes Distance Measurement Yes


Battery Type Replaceable and Rechargeable Li-ion Battery Battery Operating Time 4.5-hour continuous running with CVBS and hotspot function off (@25°C, one provided battery) 6 hours of operation (LRF & hotspot on, @25°C, three provided batteries) Type-C Power Supply 5 VDC, 2 A Supports External Power Supply


Protection Level IP67 Dimension 180.7 mm × 52.7 mm × 85.4 mm (7.11" × 2.07" × 3.36") Weight 386 g without battery Working Temperature -30°C to +55°C Laser Rangefinder Safety Class for Laser Class 1 Wavelength 905 nm Max. Measuring Range 1000 m Measurement Accuracy ± 1 m Min. Measuring Range 10 m
