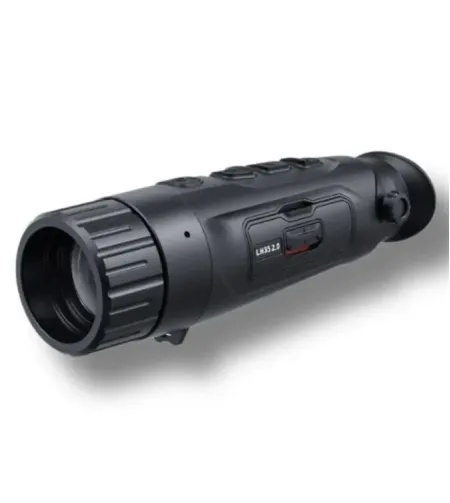

Thermal Monocular HIKMICRO LYNX LH35 2.0

With the new HIKMICRO LYNX LH35 3.0, you get a compact and powerful thermal imaging camera that can be stored in any pocket despite its manually focusable lens. The perfect device for all hunters who want a handy companion with easy operation and good performance.

• Highly sensitive sensor NETD < 20 mK (@25°C, F# = 1.0)
• 384 × 288 resolution with 12μm detector
• 0.39-inch OLED display with a resolution of 1024 × 768
• Replaceable and rechargeable Li-ion battery
• Compact, ergonomic design and weighs only 338g
• Up to 6.5 hours of continuous operation

The camera features a 35mm lens and can detect thermal sources up to a distance of 1800m thanks to the highly sensitive sensor. The powerful Vox sensor with a resolution of 384x288 pixels and a pixel pitch of 12µm produces sharp and high-contrast images in complete darkness. The lens with a focal length of 35 mm and a fixed optical magnification of 3.3x gives the monocular the ability to detect up to 1800 meters, making it suitable for open environments in fields and forests. With manual focus, the image can be sharpened to the desired distance, and with the 1x, 2x, 4x, 8x zoom, you can still clearly recognize animals at greater distances. In addition to pure observation of thermal sources, the HIKMICRO LYNX LH35 2.0 offers extensive functions such as a stadiametric rangefinder, hotspot detection, or the ability to transfer image and video recordings to your mobile device via WLAN connection. Recordings can also be conveniently stored on the internal 16 GB memory for later transfer via USB-C. All functions and settings (standby, screen brightness, contrast, zoom, color mode, etc.) are easily operable via four buttons. For power supply, rechargeable and replaceable 18650 batteries are used, allowing for continuous operation of up to 6.5 hours.



Details

Range of detection M 1800 Objective diameter (mm) 35 Magnification X 3.3x-26.4x (8x) Field of view (m) at 100m 13.1m × 10.0m Field of view ° 7.5° × 5.7° Sensor type VOx Uncooled Focal Plane Arrays Resolution, pixels 384x288 Display type, resolution 1024x768, 0.39 inch, OLED Battery Type 18650 Operating time on battery pack 6.5 Lenght (mm) 193 Weight (kg) 0.338 Degree of protection IP67 Technology Thermal Application Devices Brand Hikmicro Rangefinder No NETD, mK <20 mK
