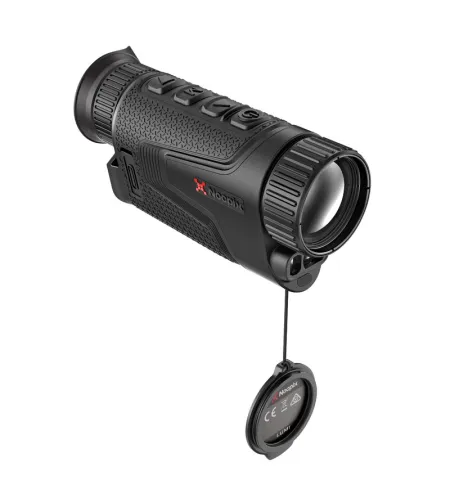

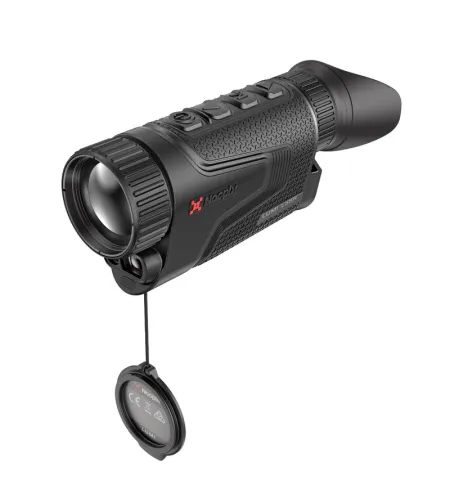

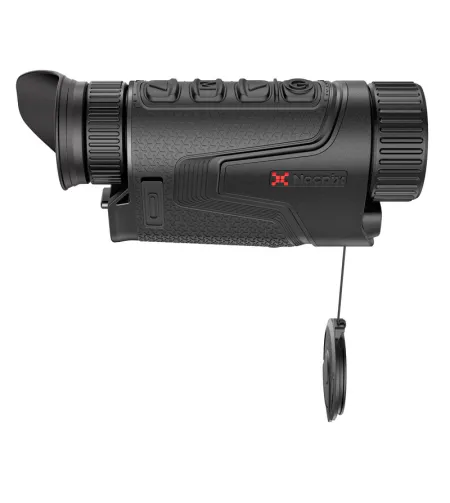

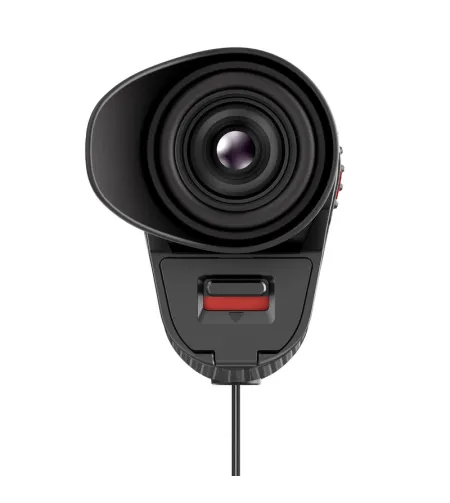

Nocpix Thermal imaging camera Lumi L35R

Lumi L35R - Key features:

• Sensor 384x288
• NETD < 18mK
• Lens 35mm f:0.9
• Integrated LRF
• Electronic image stabilisation
• R+ image algorithm
• Ballistic calculation
• 18650 replaceable battery

The Lumi LRF series makes a strong first impression with its comprehensive features. Even with the integrated LRF, you'll be impressed by its portable size, which is smaller than a mobile phone. Powered by proprietary sensor technology and advanced Reality+ AI image algorithms, it delivers exceptional image quality that stands out in its class, while being incredibly comfortable to carry and use.


A superior sensor sets new standards The sensor developed in-house with a NETD of <20 or 18 mK ensures stable and outstanding performance and guarantees superior image quality, even under demanding conditions.
The most compact thermal imaging monocular with LRF Equipped with an integrated 800 m laser rangefinder (LRF), it offers fast response and low latency, adding another dimension to your observations.
Extremely handy and lightweight design It is ultra-compact and bag-sized, fitting easily into your bag with dimensions of only 147 × 47 × 74 mm. It weighs less than 385 g with the battery and 335 g without the battery, offering excellent portability and comfort.
F0.9 lens The F0.9 lens is 20% more light-transmissive than a conventional F1.0 lens, ensuring brighter and clearer images.
Reality+ image enhancement algorithms The latest Reality+ image enhancement algorithms optimise image quality and reduce noise, allowing you to get the most out of the thermal sensor.
Silent controls that won't scare away game. The silent buttons ensure that no game is startled during operation.
Fatigue-free viewing The Lumi is equipped with a variety of colour palettes, of which the red and green palettes are designed to reduce eye fatigue and enable comfortable long-term use.
Replaceable 18650 battery The Lumi is equipped with a replaceable 18650 battery that allows for up to 5 hours of uninterrupted use per charge.
10 mm exit pupil diameter The eyepiece with a 10 mm exit pupil offers an optimal viewing angle and excellent visibility from all perspectives and in every situation.
Additional outstanding advantages As a versatile product, the Lumi offers numerous advantages: it is protected to dustproof class IP67, weighs less than 400 g, has photo, video and microphone functions and 32 GB of storage space, thus meeting the highest standards of quality and performance.



Specifications

• Model LUMI L35R
• Resolution 384 × 28
• Pixel size, μm 12
• Thermal sensitivity NETD, mK ≤18
• Frame rate, Hz 50
• Lens, mm 35 F0.9
• Field of view, ° 7.5 × 5.7/13 × 10
• zooming in 4 ~ 16
• Detection distance 1800
• Dioptres -5 ~ + 5
• Ekranas AMOLED 1024×768
• Battery Replaceable 18650
• Max. operating time, (t=22°C) hours 4,5
• Sound recording Yes
• Memory capacity, GB 32
• security class IP67
• Range finder Class 1, 800 m
• Operating temperature, °C -20 to +50
• Weight, g (with battery) 375
• Size, mm × × 147 47 74
