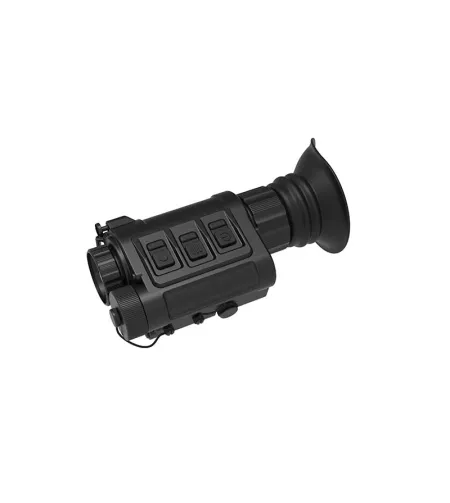

PFN 640+ Multi-functional Thermal monocular

Meet PFalcon (EU) & Rico RH 25 (US) Series , the Multi-functional thermal imager monocular. Handheld, helmet, clip-on multi-purpose equipment, which is used for individual reconnaissance. Lighweight, small in size, easy to carry, and has the characteristics of long working time and good concealment.

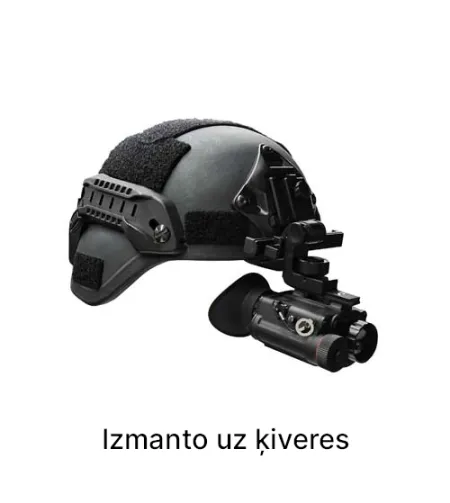

• Support 4 modes of use: handheld, helmet and clip-on
• High performance 12μm VOx detectors: provide clear images at night and in harsh weather conditions;

Detector 640×512/12um Lens f25mm Human recognition 600m Vehicle recognition 1070m NETD ≤40mK Frame rate 50Hz FOV 17.2°x13.7° Ocular Lens 14 Laser pointer No Diopter compensation -4 to +4 dpt Optical zoom 1x Electonic zoom 1 – 4x Battery life ≥ 4h Battery type 1x 18650 (Rechargeable battery) Display 1024×768 AMOLED Storage 64 GB Recoil proof Yes Mounting options Handheld, helmet, clip-on, direct aim Weight 355 g Dimensions 105 x 65 x 48 mm IP raiting IP67 Operating temperature -40°C to + 55°C Storge temperature -55°C to + 70°C



Other characteristics

• Wi-Fi program update, transfer files;
• Up to 1600 images and 40 hours of video on 64G internal memory;
• 3 types of calibration presets, support custom calibration distance;
• The vibration absorbing bracket is connected to absorb shock vibration, and the image is more stable;

Included accessories

• Soft carry bag
• Eye-cup (2 – one picatinny mount, other for helmet mount & as clip-on)
• Helmet mount (minirail)
• Charging and data transfer cables
• USB Power adapter (USA)
• Battery charger
• Battery cap for 18650 & 18700
• Picatinny mount
• Connector between PFalcon and helmet mount
• Microfiber cloth
• Tool kit
• Screws (blunt tip for helmet mount / triangle tip for picatinny mount)
