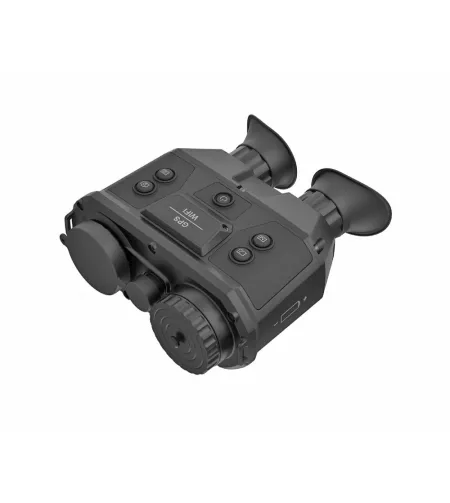

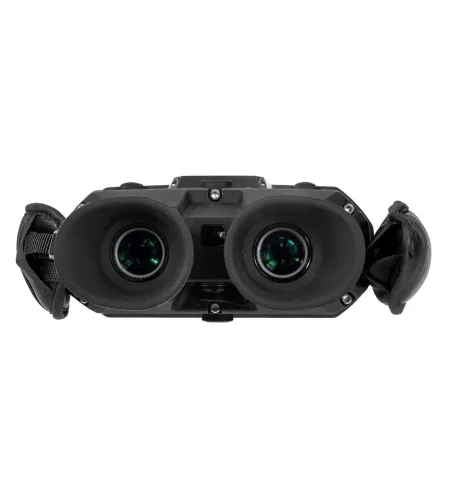

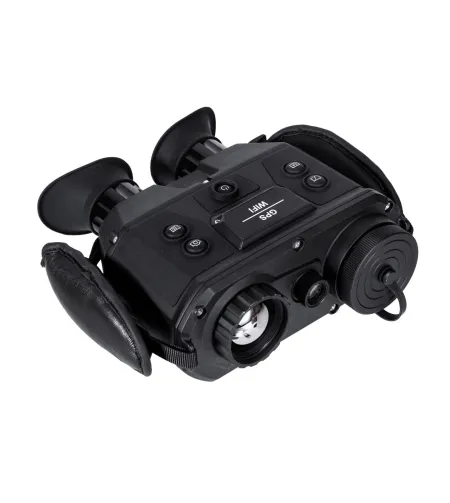

HIKMICRO DS-2TS16-35VI/W 4x Wi-Fi Thermal Imaging Binoculars

Description Handheld Thermal Binocular Camera DS-2TS16-35VI/W 4x Wi-Fi • High-sensitivity thermal module with a resolution of 640 × 512 • NETD <40 μK (at 25 °C, F# = 1.0) • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR • High-quality optical module with a resolution of 1280 × 960 • Large 0.39-inch OLED display • Automatic OLED backlight • Video recording, playback, snapshot, and search (users can view events on the device) • Wi-Fi hotspot, GPS, cursor display • Up to 7 hours of continuous operation Specifications Thermal Module • Image Sensor Uncooled vanadium oxide focal plane array • Max. Resolution 640 × 512 • Pixel Pitch 17 μm • Response Frequency Range 8 μm to 14 μm • NETD <40 μK (at 25 °C, F# = 1.0) • Lens (Focal Length) 35mm • Field of View 17.7° × 14.2° • Aperture F 1.0 • MRAD (IFOV) 0.486 • Digital Zoom 4× Image Display • Thermal/Optical Mode Thermal, black-and-white optical view, image fusion can be selected • Image Fusion Color fusion, black-and-white fusion • Monitor 0.39 inch, OLED, 1024 × 768 • Palettes Black hot, white hot Optical Module • Max. Resolution 1280 × 960 @ 25 fps • Image Sensor 1/3-inch CMOS with progressive scan • Min. Illumination B/W: 0.001 lux @ (F1.0, AGC on) • Lens (Focal Length) 12mm, manual focus • Image Enhancement 3D DNR, adaptive AGC Smart Function • Hot Track Yes • Object Highlight Yes • Cursor Display Cursor is displayed in the view for approximate target distance measurement. • Automatic Backlight OLED backlight automatically turns off if no human eye is detected. System • Video Recording Onboard video recording • Snapshot Built-in image capture • Video Playback Yes • Image Search Yes • Wi-Fi Yes • GPS Yes • Storage Built-in memory module (32GB) Power Source • Battery Type Four 18650 batteries, takes 5 hours for full charge • Battery Life ≥7 hours • Battery Capacity Display Yes General • Power 5V DC / 2A • Weight <1.0 kg (2.20 pounds) • Protection Level IP67 • Dimensions 164 × 182.3 × 73.3 mm (6.46 × 7.18 × 2.89 inches) • Cable Output Aviation plug: connections to BNC, DB9, and USB • Accessories (Included) Charger, charger power cable, cleaning cloth, two wristbands, user manual, aviation plug cable, eight batteries • Mounting UNC 1/4”-20 • Operating Temperature -30°C to 55°C (-22°F to 131°F)
