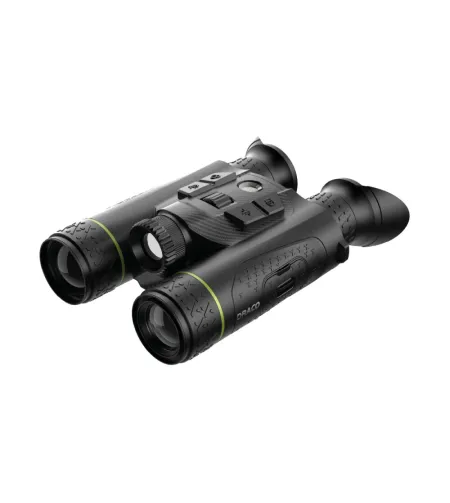

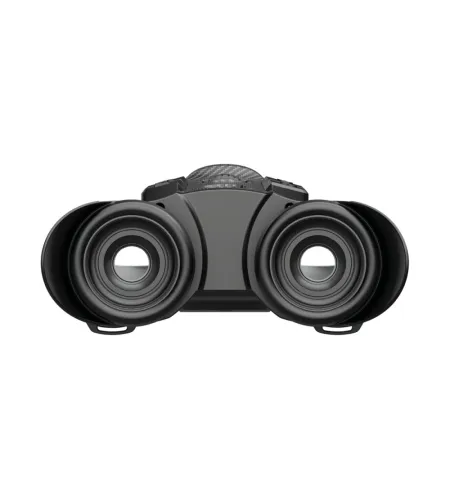

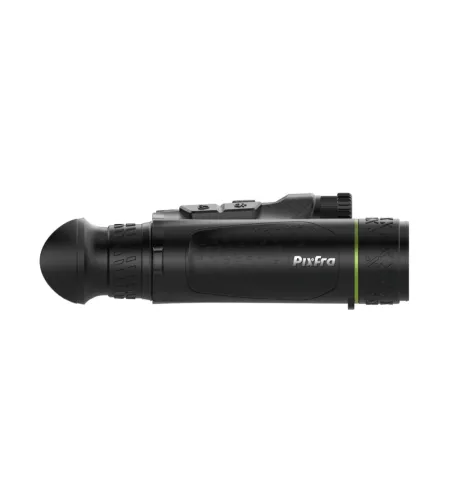

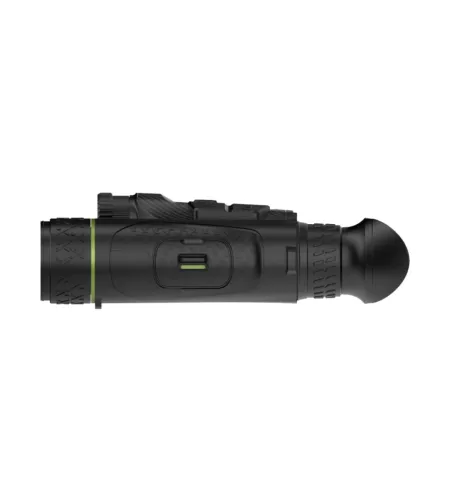

PIXFRA Draco PFI-D335N-4K 940NM Multispectral Thermal Imaging Binoculars

Description

Thermal parameters
Detector type: uncooled vanadium oxide detector in the focal plane
Effective pixels: 384 × 288
Pixel pitch: 12 μm
Spectral range: 8-14 μm
Sensitivity (NETD): ≤15 mK at f/1.0
Focal length: 35 mm
Aperture: F0.95
Focusing control: manual
Field of view: H: 7.5°; V: 5.6° / H: 13.7 m; V: 10.3 m (@100 m)
Detection range: 1,800 m
Minimum focusing distance: 3 m
Digital zoom: 1×-8×
Base magnification: 3.8×


Digital parameters

Resolution: 3840 × 2160 (4K)
Frame rate: 50 Hz
Focal length: 55 mm
Aperture: F2.0
Field of view: H: 8.0°; V: 4.5°
Minimum focusing distance: 7 m
Base magnification: 5.5×
Digital zoom: 1×-8×


Display and functions

Identical to PFI-D225-4K: OLED display, color palette, Thermal/Visible/PIP modes, Wi-Fi, GPS, PIPS 3.0, Smart IR, and others.


IR and laser functions

IR illuminator wavelength: 940 nm
IR illuminator range: 350 m
Replaceable IR illuminator: Yes
Laser rangefinder: 1,000 m (±1 m)


Power and design

Power supply: 5 V DC, USB Type-C
Battery: 18650 (replaceable)
Operating time: ≥8 hours at 25°C
Operating temperature range: from -30°C to +55°C
Protection: IP67
Dimensions: 195 × 130.6 × 61.7 mm
Weight: ≤0.62 kg
