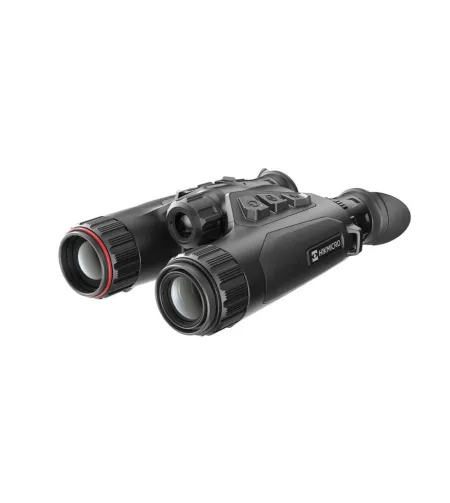

Multispectral Binocular HIKMICRO HABROK 4K HE25L

HABROK from HIKmicro is a thermal imaging binocular. Unlike conventional monocles, with HABROK you look at the device's integrated screen with both eyes. The device covers everything a hunter needs for twilight hunting: Fusion of thermal imaging and night vision – The device has two night vision channels. Firstly, the thermal imaging channel and secondly, the infrared night vision channel. Thermal imaging enables quick detection of heat sources/animals in the dark (ideal for glass). Thanks to the IR-based night vision channel, the game can then be tackled much more accurately, as infrared night vision provides significantly more image information. Thanks to the “fusion” setting, both images can also be displayed simultaneously.
NEW | Individually focusable channels – The thermal imager, night vision channel and IR illuminator (light cone) can be focused independently of each other. This means that optimal performance of individual channels can be achieved.
Laser Range Finder - Finds the distance to a target in fractions of a second at the push of a button. Especially useful when HABROK is used in conjunction with a thermal imaging accessory. Because distances are often difficult to determine using only thermal imaging.
Interchangeable battery system – The use of commercially available 18650 batteries makes the power supply extremely flexible. Batteries can be changed in seconds. (4x batteries included). Dual vision: thermal and night vision
HABROK is equipped with a thermal imaging channel and an infrared powered night vision channel. These technologies can be used individually or combined in fusion settings to better identify and target game. This duality offers unparalleled clarity and precision when hunting. Laser-assisted precision with LRF
With the integrated laser range finder (LRF), you can measure distances up to 1,000 m with an accuracy of ± 1 m. This feature is an essential tool for making accurate calculations and informed decisions while hunting.


Range of detection M 1200/400
Objective diameter (mm) 60/25
Magnification X 5.5x - 22.0x（4x)/4.3x-17.2x (4x)
Field of view (m) at 100m 12.0m × 7.2m/12.2m x 9.3m
Field of view ° 6.9° x 4.1°/7.0° × 5.3°
Sensor type VOx Uncooled
Resolution, pixels 3840 x 2160/256 x 192
Display type, resolution 1920 ×1080
Illuminator type, IR wavelength 850
Operating range 400
Battery Type 18650
Operating time on battery pack 6
Lenght (mm) 138.2
Weight (kg) 0.780
Degree of protection IP67
Technology Thermal/Digital
Application Devices
Brand Hikmicro
Rangefinder Laser
Pixel pitch, µm 12
NETD, mK <20
