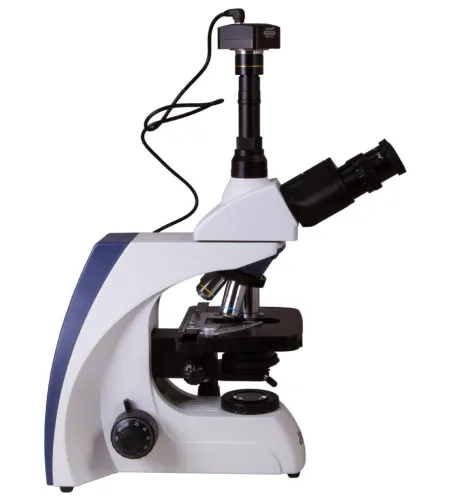

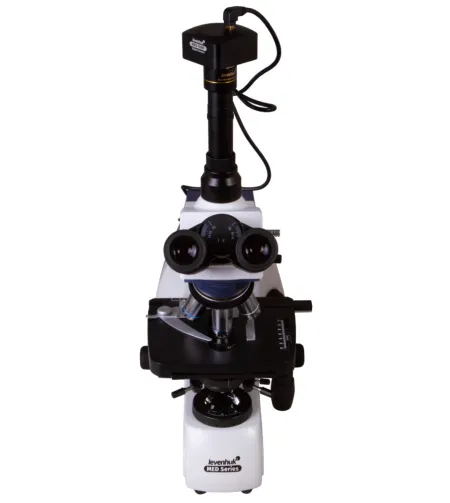

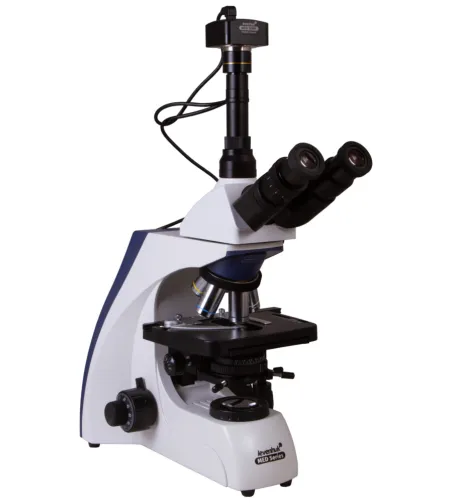

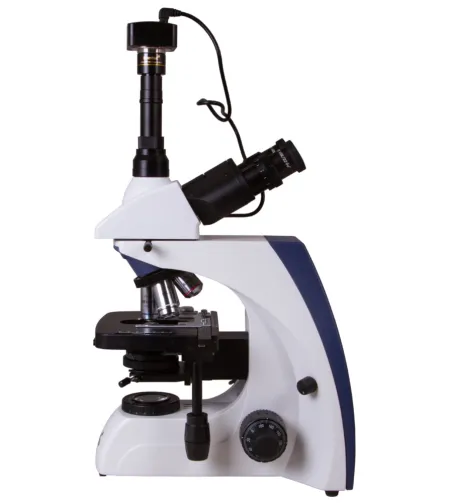

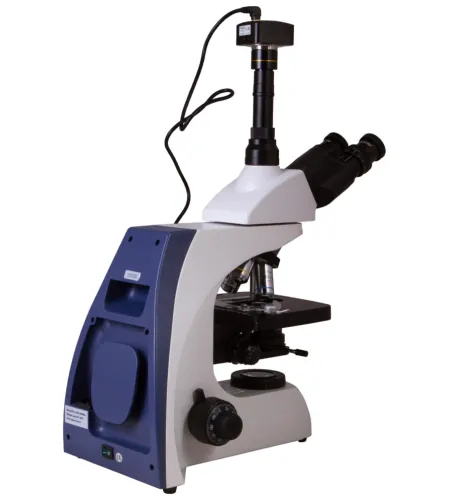

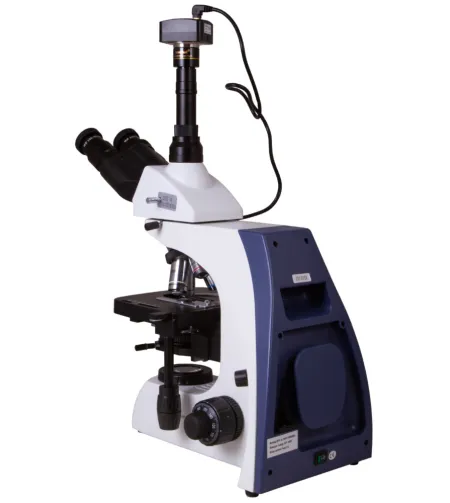

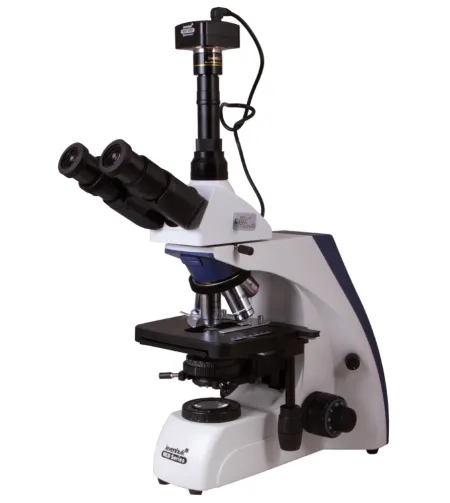

Levenhuk MED D35T Digital Trinocular Microscope

The Levenhuk MED D35T Digital Microscope for scientific research combines the capabilities of a classic biological model and a microscope for taking digital photos and videos. It comes with a 10MP camera that is connected to a computer and allows for observing an image on its screen in real-time mode. This microscope is excellent for a university department, research center, or clinical and diagnostics laboratory. Plan achromatic infinity-corrected optics The microscopes in the Levenhuk MED 35 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with high level of flatness. One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers, epi-fluorescence light, and phase contrast devices. All in all, modular design and simple operation make Levenhuk MED 35 optimal microscopes for using in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories. The Levenhuk MED 35 series includes scientific microscopes for working in a laboratory A trinocular head has a binocular visual unit and a vertical tube inclined at 30° for installing a digital camera in it. There is a beam splitter. The head is 360° rotatable, which is convenient if the sample should be observed by several researchers. Capabilities of the optical system Scientific and research work with Levenhuk MED D35T microscope is practical and precise. The image is formed by wide-field 10x eyepieces with diopter adjustment and five plan achromatic objectives with various magnification. Plan achromatic optics flatten the field of view, reduce chromatic aberrations, and improve color rendering. You can conduct highly detailed observations at magnifications of 40x to 1000x. The objective lenses with 40x, 60x, and 100x magnifications are equipped with spring-loaded protective frames; the 100x objective lens is used for oil immersion observations. The sharpness is adjusted with the coarse and fine focusing adjustment knobs. Convenient work with microscope slides The stage is moveable along two axes and equipped with a mechanical scale. Underneath, there is a halogen light (30W) with adjustable brightness. An Abbe condenser with an iris diaphragm is used for directing an optical beam. There is a special holder for putting optical filters, which enhance the image sharpness and contrast. Three optical filters are included in the kit. You can also set up Köhler illumination. The light is powered by an AC power supply. A 10M digital camera for capturing photos and videos A 10MP sensor in a digital camera (included in the kit) allows for obtaining high-resolution pictures. Moreover, recording smooth videos with high frame rate is available. A camera transmits an image to a computer screen online. That makes work in a laboratory easier and more practical as well as reduces eyestrain and tension in the rotator cuff, as there is no necessity to look through the eyepieces. Special software (on an included CD) allows for the simple processing of recorded images. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). A digital camera is powered and connected to a computer via a USB cable. Scientific work with Levenhuk MED D35T Microscope provides for precise observations, allows for using modern technologies, and conducting practical extended observations. Features:

• Magnification: 40x to 1000x

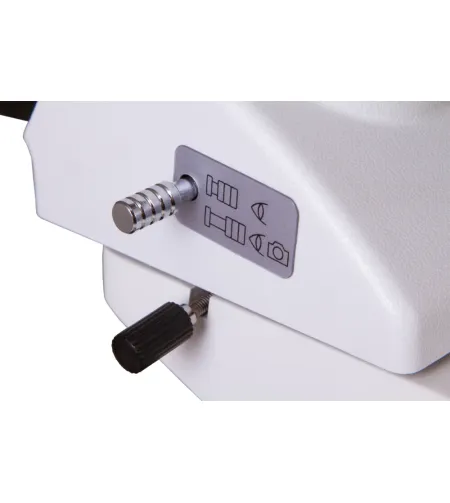

• Trinocular head with a beam splitter, wide-field eyepieces
• Plan achromatic optics with an anti-fungal coating

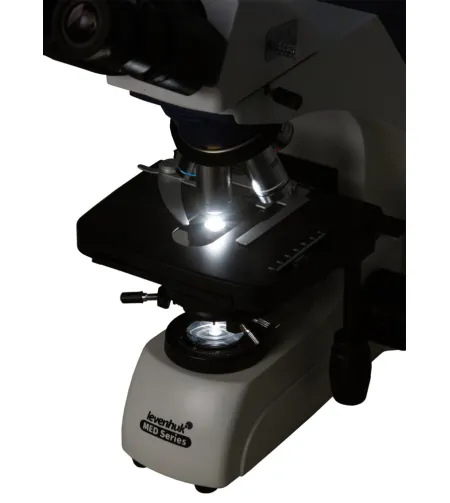

• Halogen light with adjustable brightness
• Setting up Köhler illumination is available

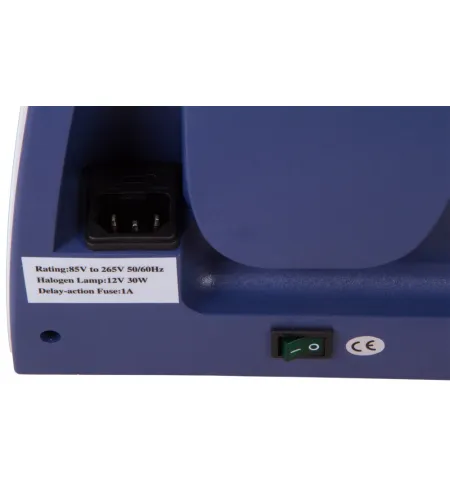

• Powered by an AC power supply
• 10MP digital camera is included

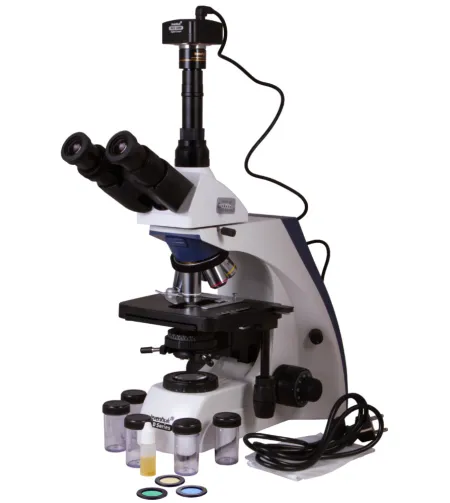

The kit includes:

• Microscope base with a stand
• 360° rotatable trinocular head

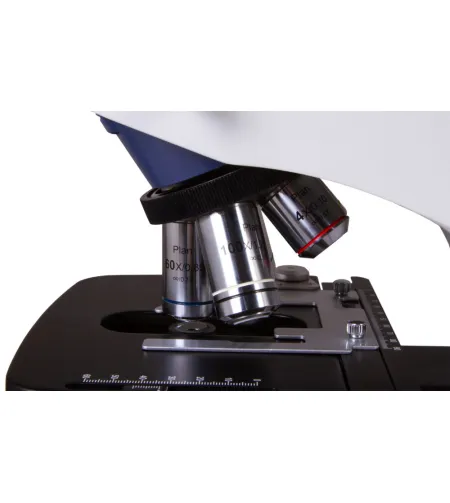

• Infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with an anti-fungal coating

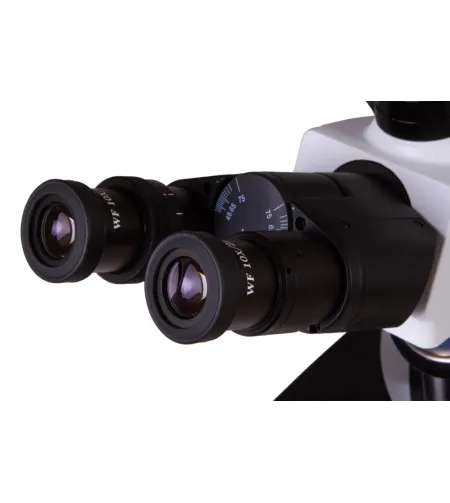

• Wide-field eyepieces: WF10x/22mm with an anti-fungal coating (2 pcs)

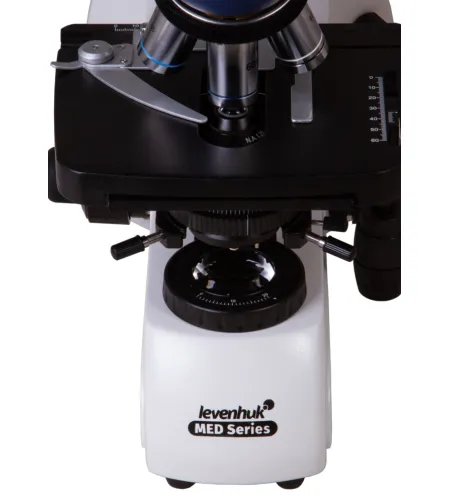

• Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Filters: blue, green, yellow
• Vial of immersion oil
• Fuse (2 pcs)
• Power cord for microscope
• Dust cover

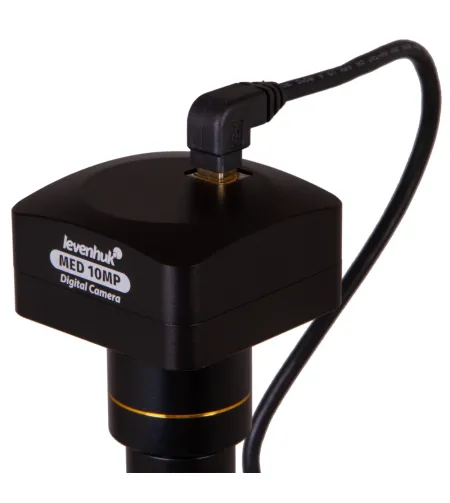

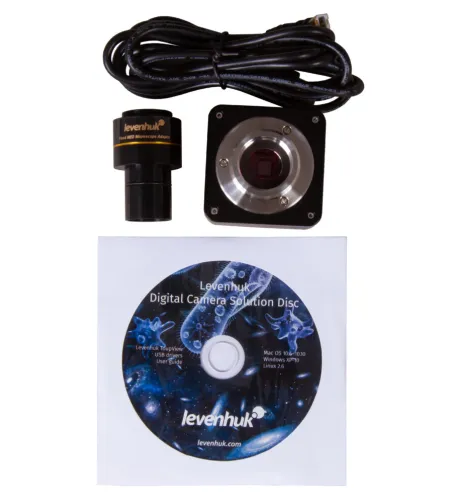

• 10MP digital camera
• Camera adapter
• Camera mount
• USB cable for connecting and powering a digital camera
• Software CD and drivers
• User manual and lifetime warranty

Head rotatable 360°, with a beam splitter Optics material optical glass with an anti-fungal coating Magnification, x 40–1000 Eyepiece tube diameter, mm 30 mm (binocular head);

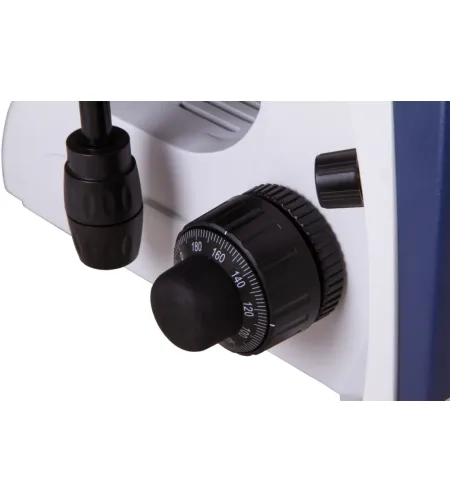

23.2 mm (third vertical tube) Eyepieces WF10x/22mm with diopter adjustment (2 pcs) Objectives infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) Revolving nosepiece 5 objectives Interpupillary distance, mm 48–75 Stage, mm mechanical double-layer, 180х160mm, with a mechanical scale Stage moving range, using focusing mechanism, mm 80/50 Eyepiece diopter adjustment, diopters ±5 Condenser Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder Diaphragm iris Focus coaxial, coarse (0.5mm) and fine (0.002mm), with rack and pinion Body metal Backlight halogen lamp Brightness adjustment yes Power source 100–240V Light source type lower light, 12V/30W, 85–230V AC Filters blue, green, yellow Additionally collector lens, Köhler illumination Megapixels 10 Sensor 1/2.3 Pixel size, µm 1.67x1.67 Sensitivity, v/lux.sec@550 nm 0.31 Video recording yes Speed 3.3@3584x2748; 11@1792x1374; 38@896x684 Active range, dB 65.2 Usage location the third 23.2mm ocular tube of the microscope; instead of the eyepiece Spectral range, nm 380–650 White balance auto/manual Exposure control 0.4–2000μs Software Levenhuk Programmable options image size, brightness, exposure time Camera slot USB 2.0, 480 Mb/s System requirements Windows XP (32-bit), Windows Vista/7/8/10 (32-bit or 64-bit), Mac OS X, Linux
processor up to 2.8GHz Intel Core 2 or higher, USB 2.0 port, CD-ROM Camera power supply via USB cable Usage General use product.
May be used by kids over 3 years old. Digital camera in the kit yes Maximum resolution 3584x2748
