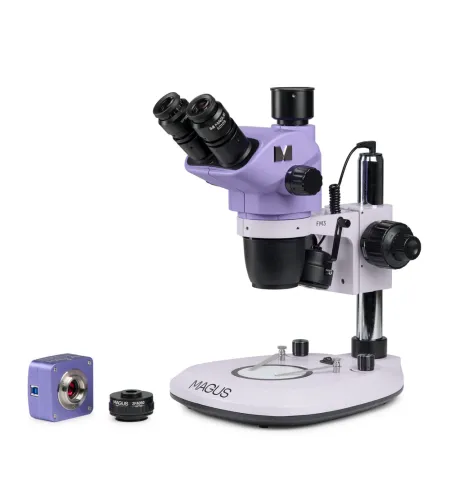

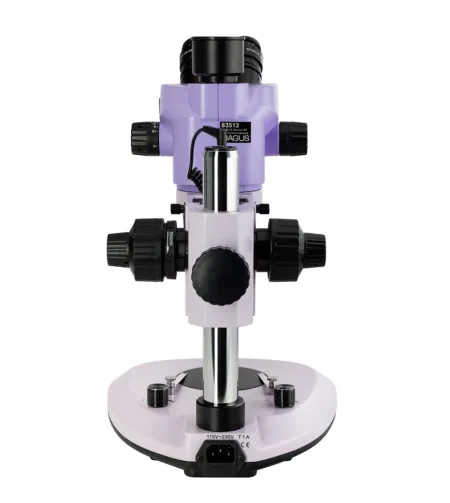

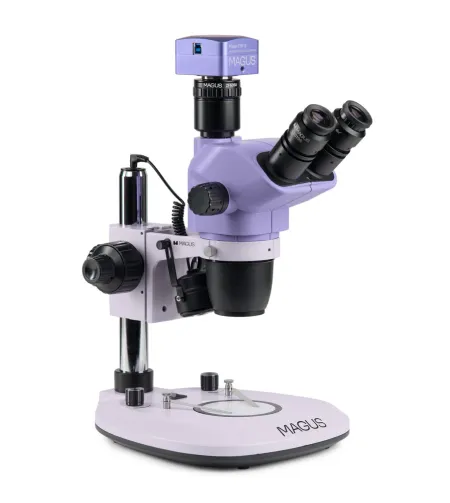

MAGUS Stereo D8T BASE Digital Stereomicroscope
- Availability: Pre-Order
- Brand: MAGUS
- Product Code: L_85281
- Weight: 8.40kg
- Dimensions: 52.00cm x 37.00cm x 37.00cm
- EAN: 5905555024561
This offer ends in:
Monthly payment: 371.68€
Period: 3 months
The stereomicroscope with Greenough optical design offers precise details of surface morphology without loss of spatial orientation, thereby ensuring high depth of field when observing three-dimensional objects.
The microscope smoothly changes magnification by a factor of 8.4 within a range of 6.5x to 55x, maintaining a working distance of 105 mm. It has built-in transmitted and reflected light illuminators for studying transparent and opaque objects. The microscope can be equipped with polarized light and darkfield accessories.
The camera within the digital microscope allows for recording the observation process along with interim and final results. The 18MP sensor provides the required resolution for the stereomicroscope. With a 1/2.3-inch sensor and a 0.5x adapter, the field of view of 18.9х14.2mm is visible on a computer screen at the lowest magnification of the microscope.
The microscope is used in restoration, assembly, quality control, as well as in zoology and botany.
Digital Camera
The affordable MAGUS CBF10 camera is suitable for work with a microscope lens” full range from 0.65x to 5.5x.
The sensor size is 1/2.3 inches. Thus, the digital microscope has a 0.5x adapter to enlarge the widescreen view on the display.
The 18MP sensor produces a realistic image of 4912x3684px. At this resolution, the frame rate is 13.1 frames per second, which is sufficient to adjust the focus of the microscope.
At resolutions 2456x1842px and 1228x922px, the frequency increases to 34.3 frames per second and 54.4 frames per second, respectively. Transitions between frames become smoother, capturing smaller movements of objects.
USB 3.0 provides 10 times faster data transfer speed than USB 2.0.

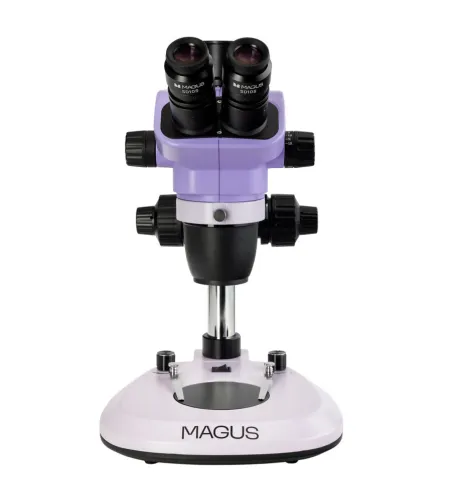

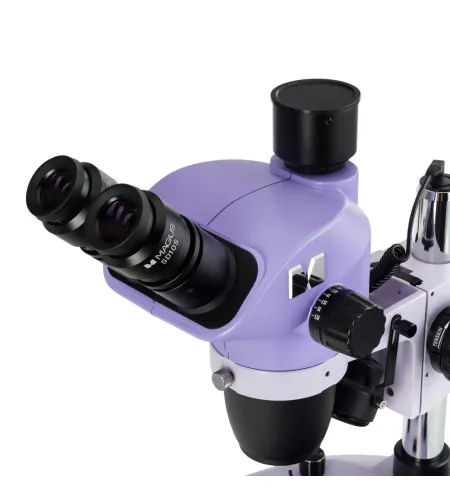

Microscope Head
The 360° rotatable trinocular head can be locked in the desired position. The digital camera is attached into the trinocular tube using a C-mount adapter.
The light path does not change. The splitting ratio is fixed: 80% for the eyepiece and 20% for the trinocular tube. The user sees the image simultaneously in the eyepieces and on the screen.
The basic configuration includes 10x/22mm eyepieces with diopter adjustment and eye relief for those wearing glasses.
Zoom Lens
The lens allows smooth change of magnification up to 8.4 times without losing focus while maintaining a large working distance of 105 mm. The microscope generates an upright (non-inverted) three-dimensional image. With accessory lenses, the microscope”s magnification range, field of view, and working distance can be adjusted.
Focusing Mechanism
Coaxial coarse and fine focus sliders set on both sides. Fine focus makes it easy to adjust the microscope at magnifications over 40x. Coarse focusing is adjustable.

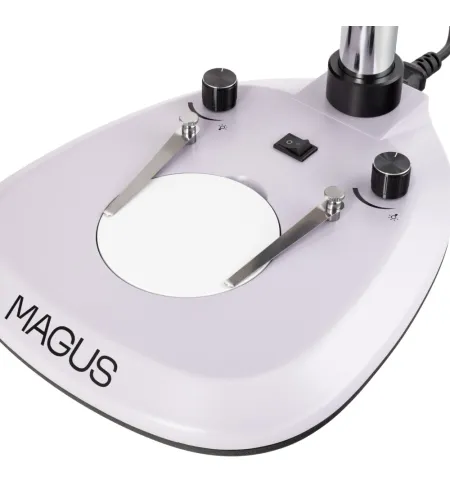

Stage Plate

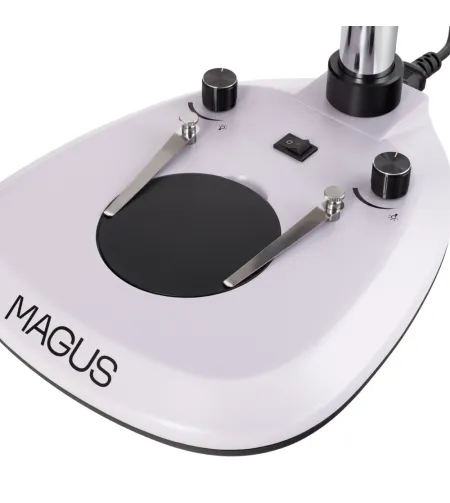

A matte glass or black-and-white plate is chosen depending on the sample. The matte glass plate ensures uniform lighting and optimal light diffusion when observing transparent and semi-transparent objects. The black-and-white plate is selected for viewing opaque objects against a contrasting background: the black side for light objects and the white side for dark objects.
Light Sources

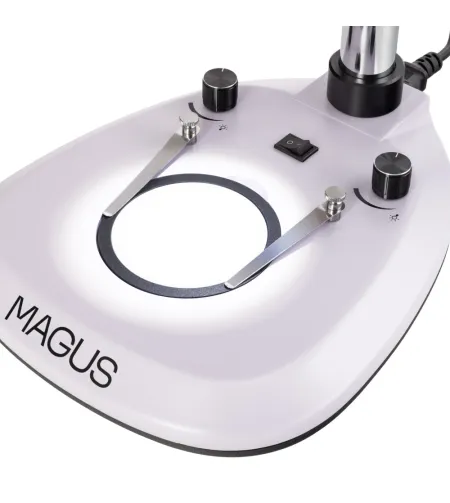

The microscope has a 3W LED transmitted light illuminator and a 3W LED reflected light angle illuminator. LED lifespan is 50,000 hours.
Accessories
A wide selection of accessories is available for the microscope.
Eyepieces and auxiliary objective lenses extend the microscope”s magnification range.
Digital cameras transmit microscope images to the monitor.

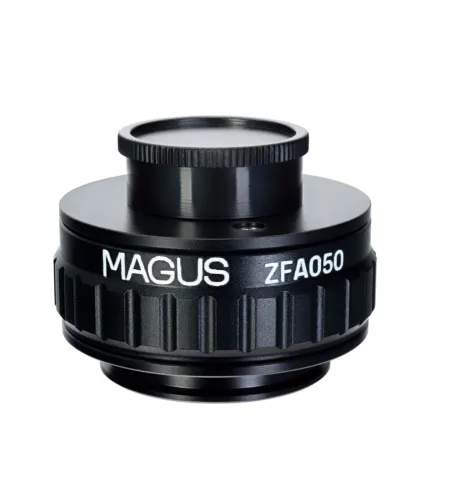

C-mount adapters connect the camera to the microscope. The adapter magnification is chosen based on the camera sensor size.
Calibration jaws are used for measuring samples. Calibration jaws on stereomicroscopes have a scale value of 0.1 mm.
A polarizer/analyzer set is used for studying anisotropic samples.
A darkfield projector with gemstone clamp enables the examination of gemstones.
A ring light is used for shadow-free illumination in the workspace in reflected light.
A ring light with a polarizer is used to remove gloss from the reflected image of polished metal surfaces.
A mechanical stage allows smooth movement of samples without jerks along two axes and provides additional comfort for the user at magnifications over 20x.
For fine-tuning the lighting area, ring illumination and jointed lighting are used to adjust the lighting in the workspace. The light is directed at a selected angle to create the necessary light shadows for observations while a certain part of the sample remains illuminated.
Universal stands allow for expanding the workspace, providing more freedom in choosing the position of the microscope head above the workspace.
Microscope Features:
- The zoom lens allows for smooth change of magnification without losing focus: 8.4:1 zoom ratio
- 360° rotatable trinocular head with a vertical tube for digital camera installation
- Benefits of Greenough optical design: high depth of field, high-resolution 3D visualization, compact design, and reasonable price
- Transmitted (3W) and reflected (3W) light LEDs ensure long lifespan
- Wide selection of compatible optional equipment
Camera Features:
- Affordable camera with 18MP Aptina CMOS sensor for brightfield observations
- 13.1 frames per second at 4912x3684px is sufficient for focus adjustment
- 34.3 frames per second and 54.4 frames per second at resolutions 2456x1842px and 1228x922px for classroom demonstrations
- USB 3.0 interface with fast data transfer speeds without jumping or delay
- The software provides photography, recording videos, editing, external monitor display, and linear and angular measurement functions
Package:
- MAGUS CBF10 digital camera (digital camera, USB cable, recording device with drivers and software, user manual, and warranty card)
- Base with built-in transmitted light source, built-in power source, and stand with focusing mechanism
- Microscope head – objective part and eyepiece tubes
- 10x/22mm eyepiece with eye relief and diopter adjustment (2 pieces)
- 0.5x C-mount adapter
- Black-and-white plate
- Matte glass plate
- Reflected light angle illuminator
- Microscope power cord
- Kneepad
- User manual and warranty card
Available for Order:
- 10x/22mm eyepiece with scale
- 15x/16mm eyepiece (2 pieces)
- 20x/12mm eyepiece (2 pieces)
- 25x/9mm eyepiece (2 pieces)
- 30x/8mm eyepiece (2 pieces)
- 0.5x auxiliary objective lens
- 1.5x auxiliary objective lens
- 2x auxiliary objective lens
- 1x C-mount adapter
- Polarizer/analyzer set
- Darkfield projector
- Ring light
- Ring light with polarizer
- Ring light with sector control
- Dual jointed light
- Mechanical stage
- Universal base with focusing mechanism
- Gemstone holder
- Digital camera
- Calibration switch
| Brand | MAGUS |
| Warranty | 5 years |
| EAN | 5905555024561 |
| Package size (W/D/H) | 52x37x37 cm |
| Transport weight | 8.4 kg |
| === Separator === | Microscope Specifications |
| Type | stereo/instrumental |
| Microscope head type | trinocular |
| Head | 360° rotatable, lockable in any position |
| Head tilt angle | 45° |
| Magnification, x | 6.5–55 basic configuration (*optional: 3.25–330) |
| Magnification range | up to 200x |
| Zoom ratio | 8.4:1 |
| C-mount adapter magnification, x | 0.5 |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10x/22 mm, long eye relief (*optional: 10x/22 mm with scale, 15x/16, 20x/12, 25x/9, 30x/8) |
| Objectives | 0.65–5.5x (*optional: using additional measurement eyepieces and auxiliary objectives: 3.25–330x) |
| Working distance, mm | 105 (*optional: using additional measurement eyepieces and auxiliary objective lenses: 177, 47, 26) |
| Interpupillary distance, mm | 54 — 75 |
| Field of view, mm | 33.8–4 (*optional: using additional measurement eyepieces and objectives: 67.7–0.9) |
| Stage, mm | Ø95 |
| Stage features | black-and-white plate, transparent plate |
| Eyepiece diopter adjustment, diopters | ±5 on each eyepiece |
| Focus | coaxial, coarse (45mm, coarse focus tension adjustment) and fine (0.002 mm) |
| Lighting | LED |
| Sound volume adjustment | yes |
| Power supply | AC power, 115–230/50/60 |
| Light source type | reflected light: angle light source - 3W LED; transmitted light: 3W LED |
| Temperature range, °C | 0 — 40 |
| Possibility to attach additional devices | polarization device, darkfield condenser, auxiliary objectives (0.5х, 1.5х, 2х) |
| User level | experienced users, professionals |
| Complexity of assembly and installation | complicated |
| Optical scheme | Greenough stereomicroscope |
| Application |
