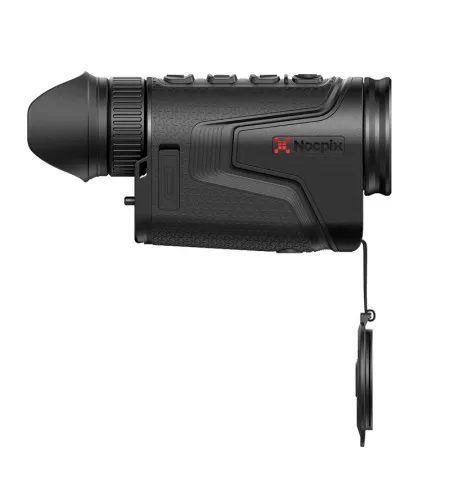

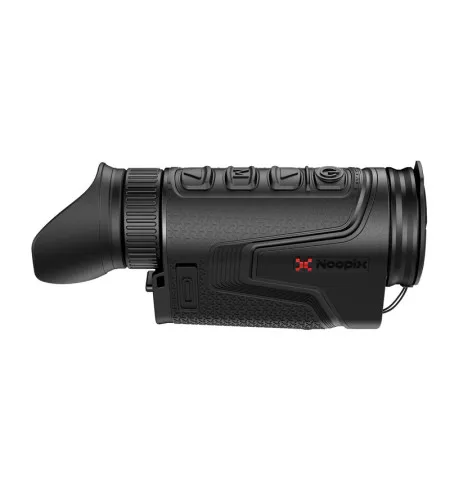

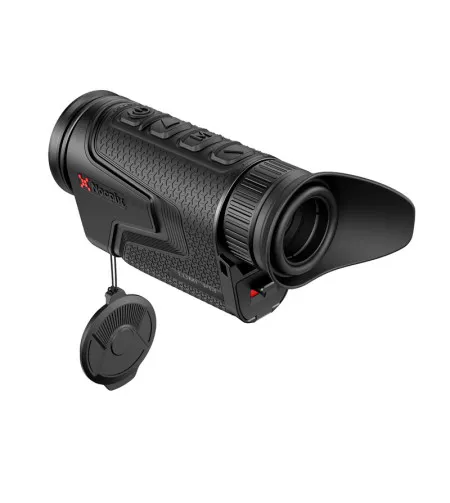

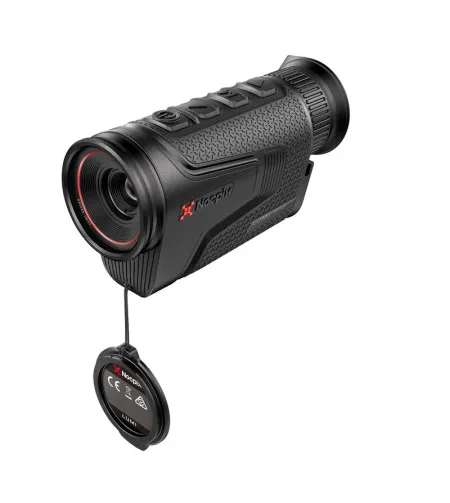

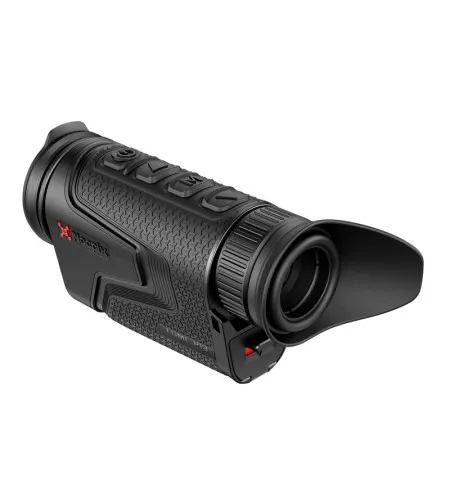

Nocpix Thermal imaging camera Lumi P13

The Nocpix LUMI P13 Thermal Camera Series, with its compact body and excellent performance, makes a good first impression. With the manufacturer's own developed thermal sensor technology and artificial intelligence "Reality+" imaging algorithms, the device stands out in its class with the ability to deliver high-quality images. Due to its small size, the device is very practical and easy to use.

Excellent Thermal Sensor The thermal sensor developed by NOCPIX is reliable and delivers outstanding performance, with NETD≤18mK, ensuring excellent image quality even in unfavorable weather conditions.

F0.9 Aperture The lens with an F0.9 aperture provides 20% more light flow into the lens compared to an F1.0 lens, ensuring brighter and clearer images.

"Reality+" Image Enhancement Algorithm With the latest "Reality+" image enhancement algorithm, image sharpness and resolution are improved, allowing the full potential of the thermal sensor to be utilized.

Silent Buttons With absolutely silent buttons, you will not disturb the observed animal during use.

Non-dazzling in the Dark LUMI series devices have several color modes, among which the green and red color palettes are intended to reduce eye fatigue during prolonged observation.

Replaceable 18650 Battery LUMI operates with a replaceable 18650 battery, which features a reverse polarity function. This is extremely useful for quick battery replacement during the night.

10mm Projection to the Eye Pupil The best viewing angle and visibility in any position are ensured with a 10mm projection to the eye pupil.

Amazing Advantages As a versatile product, Lumi boasts an IP67 rating, lightweight body weighing less than 345 g, and photo, video, and mic functionality with 32 GB of memory. Small but powerful!

Technical specifications:

• Parameters LUMI P13

• Thermal Sensor 256×192 & 12μm NETD, mK ≤20

• Frame Rate, Hz 50

• Objective Lens, mm 13 F0.9

• Field of View (H×V), °/m@100m 13.5×10.1 / 24×18

• Magnification, × 2~8

• Detection Range, m (Target Size: 1.7m×0.5m, P(n)=99%) 670

• Output Distance, mm 25

• Exit Pupil Diameter, mm 10

• Diopters, D -5~+5

• Display Type 0.39 inch AMOLED

• Screen Resolution 1024×768

• Battery Type Replaceable 18650

• Maximum Operating Time (t=22°C), h 6

• Microphone Yes

• Memory Capacity, GB 32

• IP Protection IP67

• Operating Temperature, °C -20 ~ +50

• Weight, g (with battery) 310

• Dimensions, mm 134×47×74
